Low Voltage Reactive Power Integrated Tester

General

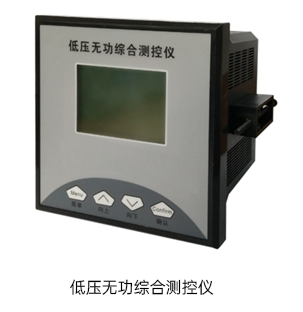

The Low Voltage Reactive Power Integrated Tester is equipped with an RS-485 communication interface, capable of acquiring and displaying electrical measurement data, monitoring and displaying the operating conditions and switching status of smart capacitors. Using this product, it can replace the following components in the existing low-voltage reactive power compensation cabinet:

• Three voltage meters, three current meters, and three power factor meters
• One low-voltage reactive power compensation controller
• All capacitor status indicator lights

This integration simplifies system configuration, reduces hardware requirements, and enhances monitoring and control efficiency.

General

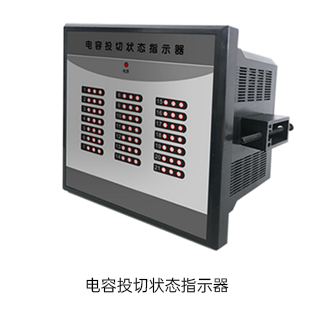

The Capacitor Switching Status Indicator is compatible with our company's smart capacitors and features simple wiring and reliable operation. It utilizes an RS-485 interface to provide real-time display of the switching status of all capacitors, significantly reducing the amount of wiring required.

Key Features:

1. Compatibility: Designed to work seamlessly with our smart capacitors.
2. Simplified Wiring: Minimizes complex connections, enhancing installation efficiency.
3. Reliable Operation: Ensures stable performance under varying load conditions.
4. Real-Time Monitoring: Displays the on/off status of capacitors via RS-485 communication.
5. Wiring Reduction: Eliminates the need for multiple indicator lights and separate control devices, streamlining system design.

This solution optimizes monitoring and control while reducing hardware requirements and maintenance efforts.

General

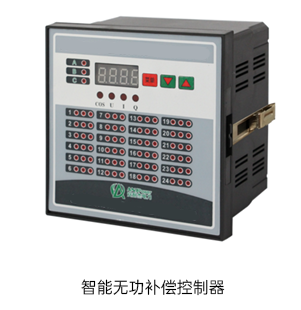

The Smart Reactive Power Compensation Controller is compatible with our company's smart capacitors and features an RS-485 interface for real-time monitoring of electrical parameters such as power factor, voltage, current, and reactive power. It also displays the number of connected smart capacitors and their switching status, significantly simplifying system configuration and reducing wiring requirements.

Key Features:

1. Compatibility: Designed to work seamlessly with our smart capacitors.
2. Real-Time Monitoring: Displays power factor, voltage, current, reactive power, and capacitor status via RS-485 communication.
3. Simplified System Design: Eliminates the need for separate meters, controllers, and indicator lights, reducing hardware complexity.
4. Wiring Efficiency: Minimizes connection requirements, saving time and cost during installation.
5. Comprehensive Control: Provides centralized management of reactive power compensation and capacitor switching operations.

This solution enhances system efficiency, reduces maintenance efforts, and ensures optimal power quality in low-voltage networks.

General

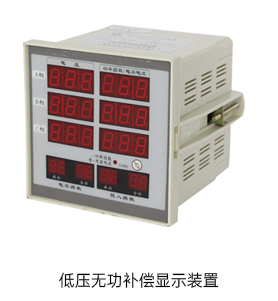

The Low Voltage Reactive Power Display Device can replace three voltage meters, three current meters, three power factor meters, one low-voltage reactive power controller, and all capacitor status indicators in the existing low-voltage reactive power compensation cabinet. This significantly simplifies the system configuration and reduces the amount of wiring required.

Key Features:

1. Function Replacement: Eliminates the need for multiple analog meters and controllers, streamlining the system.
2. Simplified Wiring: Reduces complex connections, lowering installation time and costs.
3. Centralized Monitoring: Provides real-time display of critical parameters such as voltage, current, power factor, and capacitor switching status.
4. Compact Design: Integrates multiple functions into a single device, enhancing system efficiency.
5. Cost-Effective: Minimizes hardware requirements while maintaining comprehensive monitoring capabilities.

This solution optimizes system performance, reduces maintenance efforts, and ensures reliable operation in low-voltage power distribution networks.

General

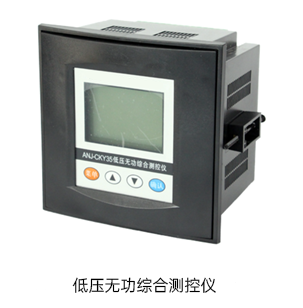

The Low Voltage Reactive Power Integrated Tester is equipped with an RS-485 communication interface, capable of acquiring and displaying electrical measurement data, monitoring and displaying the operating conditions and switching status of smart capacitors. It can replace three voltage meters, three current meters, three power factor meters, one low-voltage reactive power controller, and all capacitor status indicators in the existing low-voltage reactive power compensation cabinet, significantly simplifying the system configuration and reducing wiring requirements. This product is widely used in conjunction with IC card pre-paid electricity meters for external capacitor compensation.

Key Features:

1. Integrated Functionality: Replaces multiple analog meters and controllers, streamlining system design.
2. Real-Time Monitoring: Displays critical parameters such as voltage, current, power factor, and capacitor switching status.
3. Simplified Wiring: Eliminates the need for separate indicators and control devices, reducing installation complexity.
4. Compatibility: Designed for use with IC card pre-paid electricity meters in external capacitor compensation applications.
5. Reliable Performance: Ensures efficient reactive power compensation and stable system operation.

This solution enhances monitoring accuracy, reduces hardware costs, and improves the efficiency of low-voltage power distribution systems.
